Surface Grinding
For the grinding, satin finishing, deburring and polishing of a great variety of parts; using a through feed finishing process with multiple grinding/polishing operations.
CONVEYOR BELT

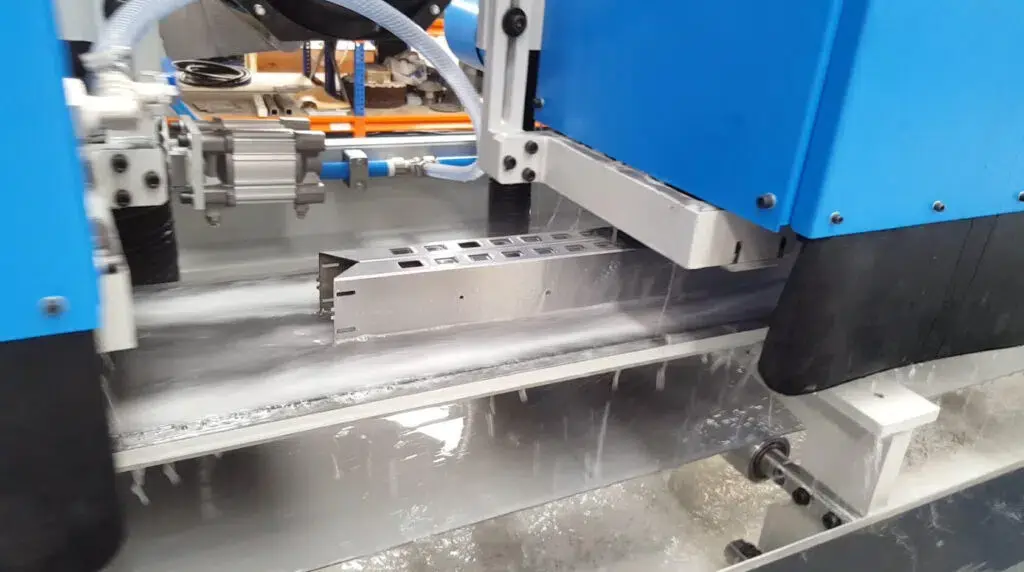

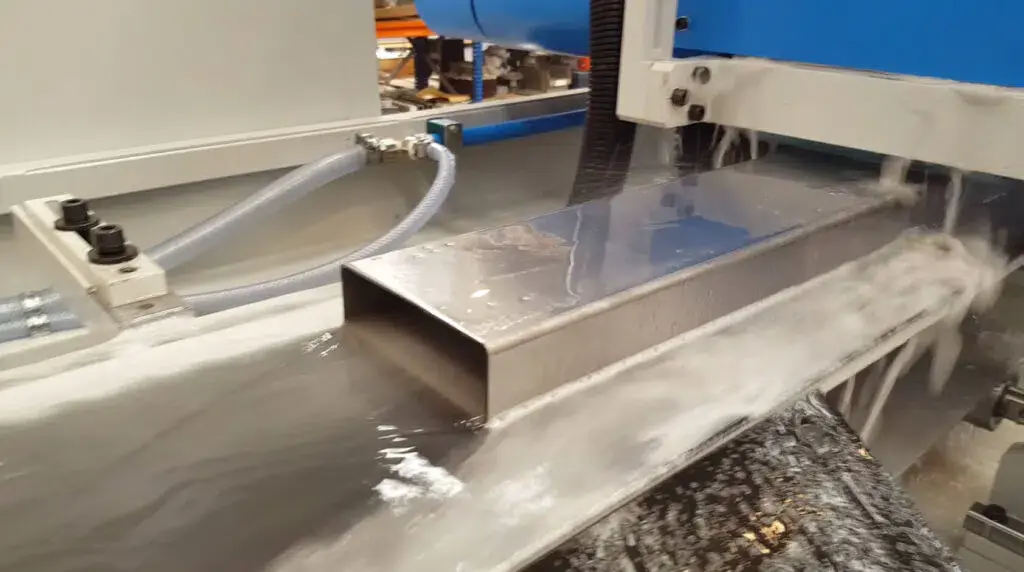

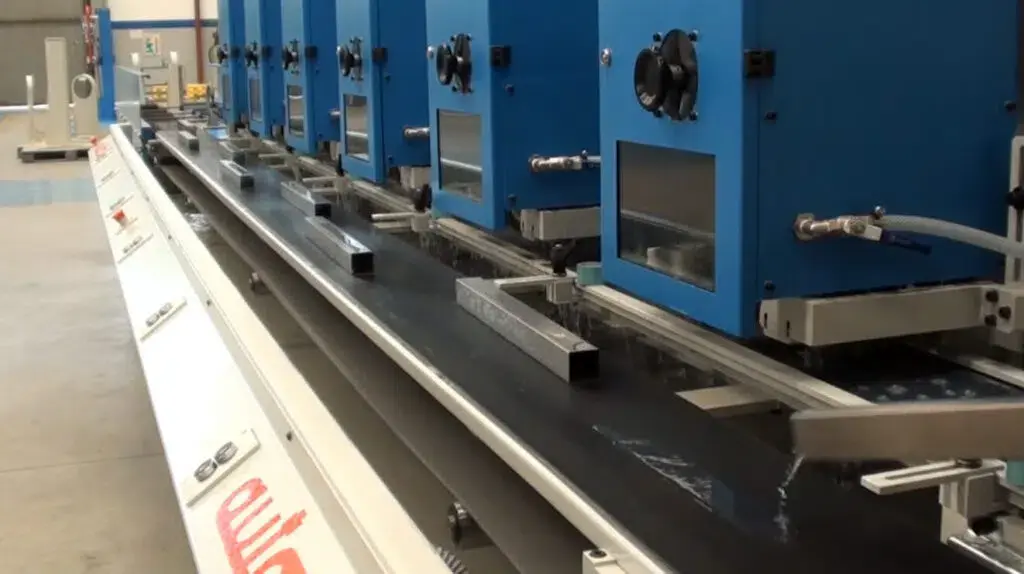

Manufactured with one continuous conveyor belt, as well as a second return belt, Model E4R, finishes a second side of the part or returns piece-holding fixtures to the loading point. Parts are processed as they move forward on the variable speed conveyor belt and are held by pressure rollers.
WORKING HEAD

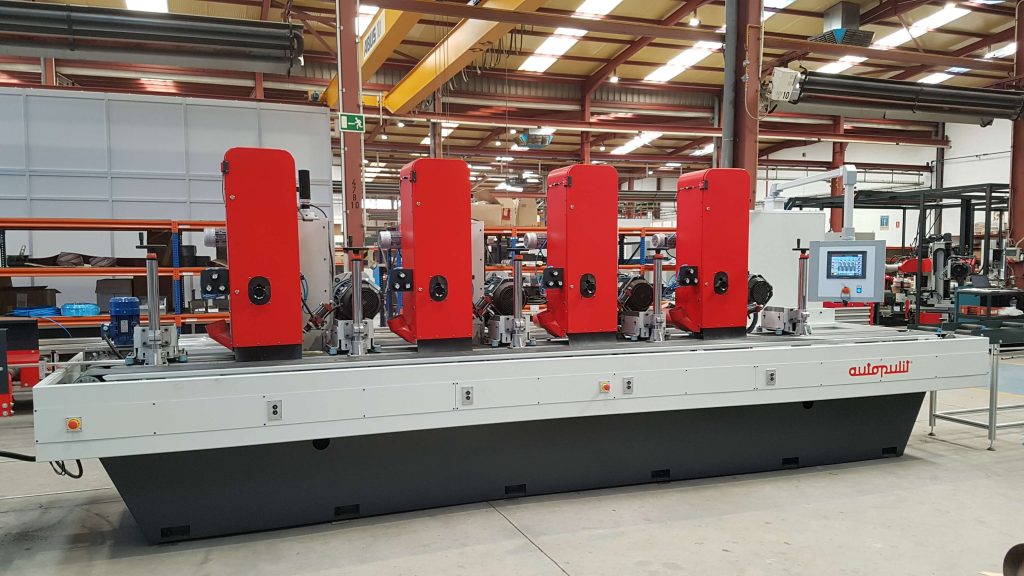

Motorized height adjustable working head, which is able to work with both abrasive belt and polishing buffs. The buff holding spindle is fitted on the "pneumatic floating oscillating arm", a very particular mechanism to AUTOPULIT, ensuring constant working pressure on the part. Up to 250 mm working width and 12 kW motor. In standard execution, this machine is available with 1 to 8 working heads.
ADDITIONAL OPTIONS
The machine is available in dry or wet execution. Available options are as follows:

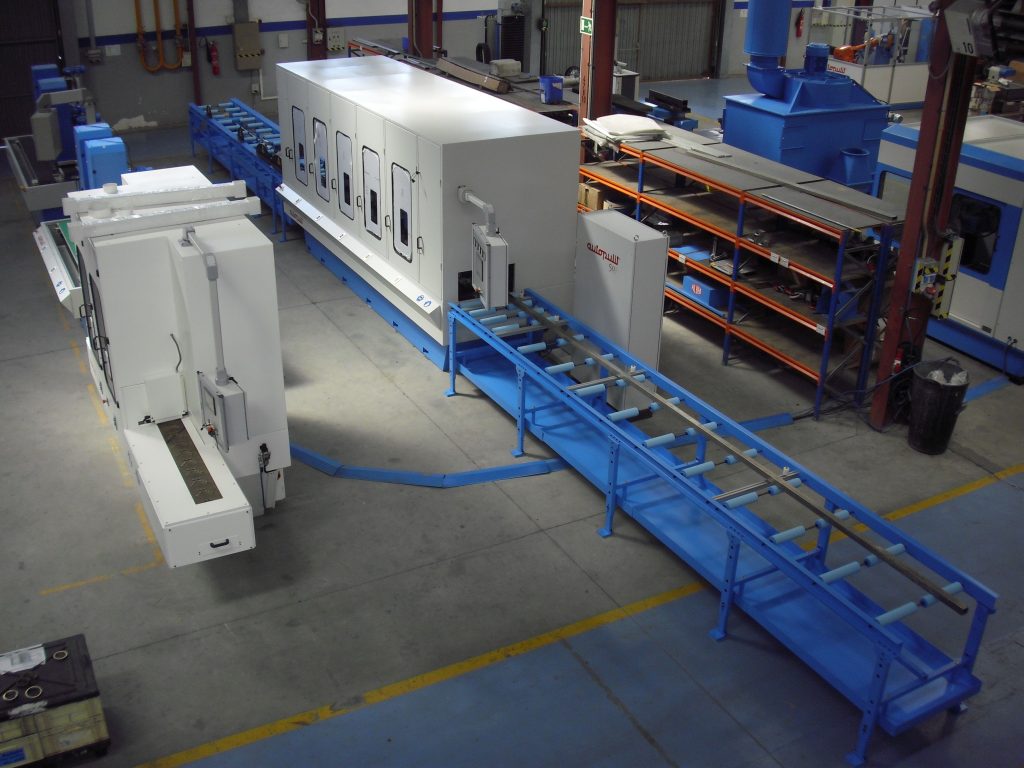

- Support tables at the inlet and outlet of the machine
- Automatic loading and unloading
- Magnetic table with demagnetizer
- For deburring tasks, a planetary device may be installed to complete the work of the abrasive belt.
APPLICATIONS

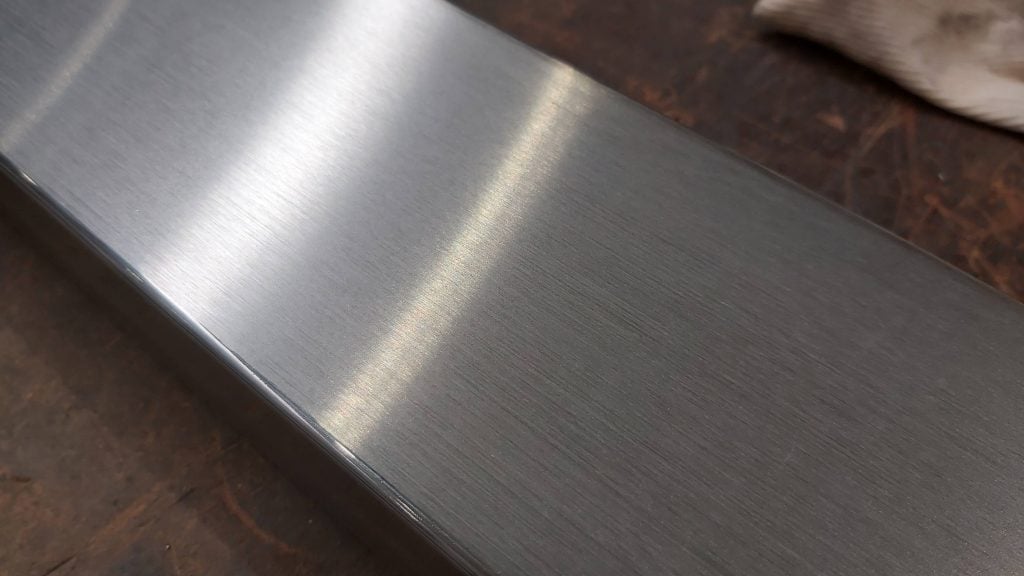

Metal plates, profiles, square or rectangular section tubes, tools, iron bases, door plates, locks, knives, laminated, calibrated, etc.
OTHER THROUGHFEED MODELS

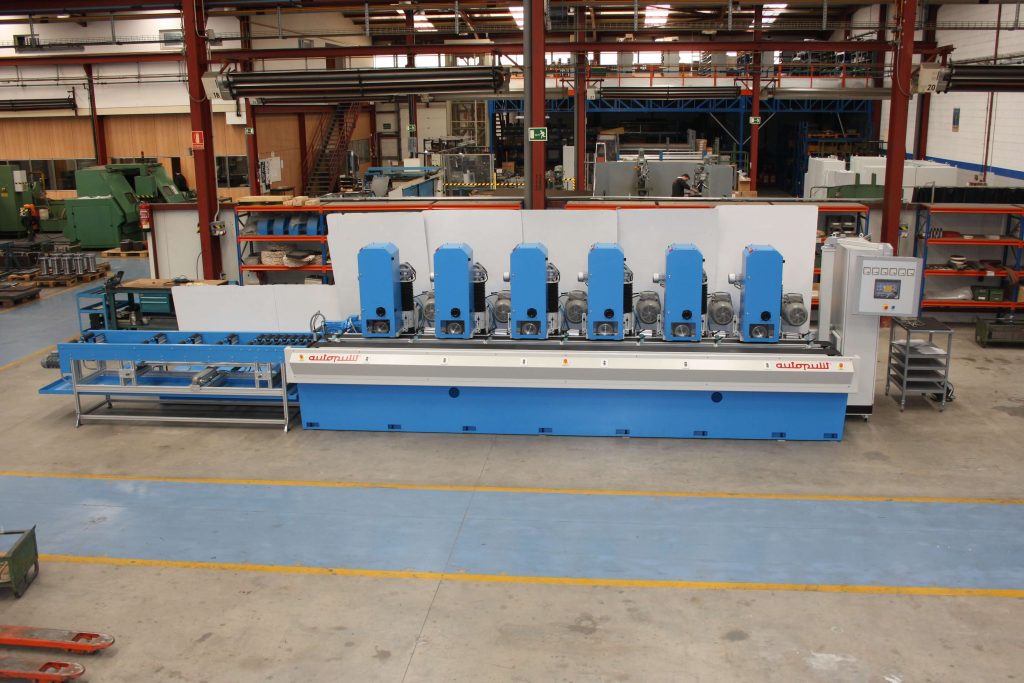

Through feed grinding machine with 5 working heads for flat parts, with return conveyor belt and rotary discs at either end of the machine to work with parts on fixtures (1 working head with flat pad).
Grinding, satin finishing and deburring machine for flat parts with 2 working heads with abrasive belt and 1 planetary head.
