ML-100 Z
Max material OD 108mm / 4.25 inches
Straight tube processing only
2 or 3 stations available
Quality and productivity: straight tube, multiple-station finishing up to Ø108mm.

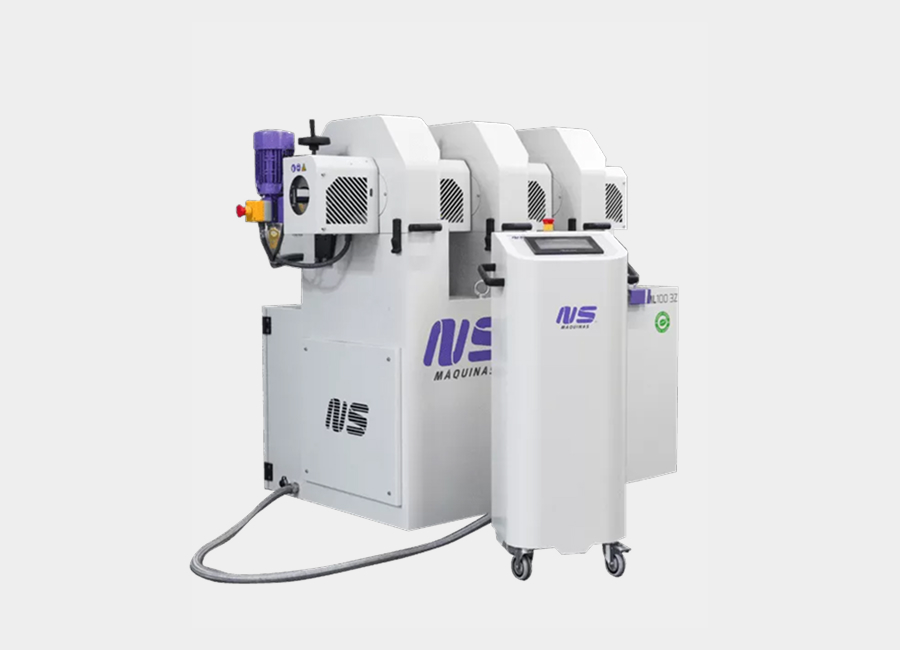

Tube Finishing and Polishing Machine – ML100 Z – is a multi-station finishing machine for straight round tubes.

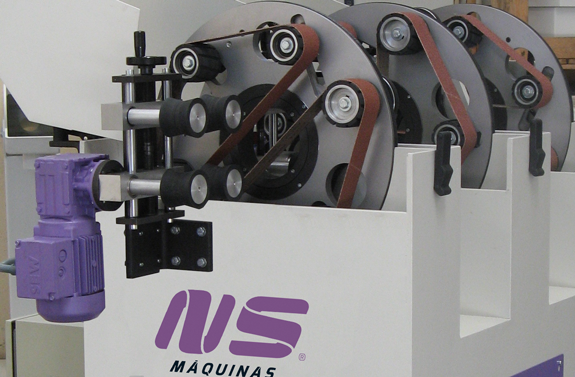

This round tube polishing machine is equipped with ML planetary system and enables faster finishing workthan single station machines.
Automatic work set-up and control of all the information about the tube finishing are done in a mobile panel
with an integrated touchscreen. Completely independent finishing stations. Final finish of the round tubes in only one go.
TECHNICAL DETAILS
| |
ML100 2Z |
ML100 3Z |
| Working capacity (Ø mm) | 15 - 108 | 15-108 |
| No. Stations | 2 | 3 |
| Abrasive belt dimensions (mm) | (4x) 50x940 | (6x) 50x940 |
| Abrasive belt speed (m/s) | 10-25 | 10-25 |
| Feeding speed (m/m) | 1-5 | 1-5 |
| Abrasive belts motor (kW) | (2x) 3 | (3x) 3 |
| Wheel motor (kW) | (2x) 1.5 | (3x) 1.5 |
| Feeding motor (kW) | (3x) 0.12 | (4x) 0.12 |
| Total power (kW) | 9 | 14 |
| Consumption (A) | 27 | 33 |
| Dust extraction connection (Ømm) | (2x) 80 | (3x) 80 |
| Dimensions (mm) | 900x1150x1300 | 950x1450x1300 |
| Weight (kg) | 430 | 600 |
